12v 15.4W 10/100M 4 port AF poe ethernet switch for IP camera
Description: 5-PORT 10/100 switch with 4 PoE ports and 1 Uplink Ethernet, IEEE 802.3af;
PoE Power Output: 15.4Watts per port. Total power budget 48Watts
◆ IEEE 802.3af power on up to 4 ports
◆ Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆ 5x 10/100 Mbps Ports with AutoUplink™
◆ Supports PoE power up to 15.4W for each PoE port
◆ Supports PoE IEEE 802.3af compliant PDs
◆ Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
◆ 1K entry MAC address table of the PoE Switch with auto-learning and auto-aging
◆ Support Extend 250meters

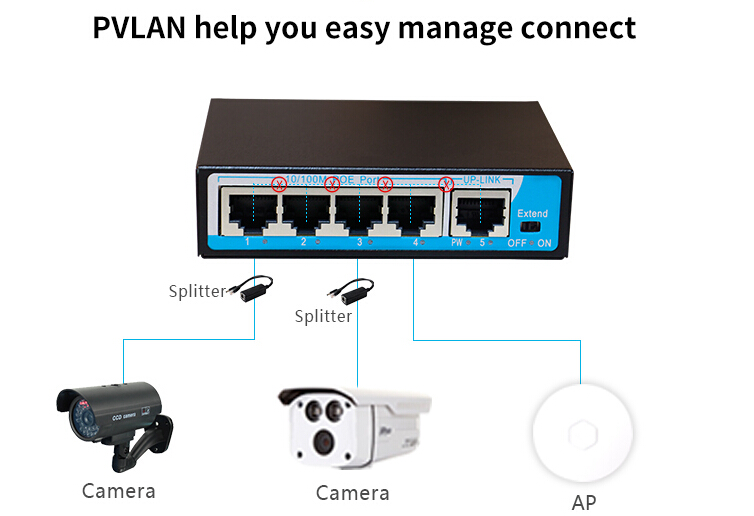

◆ Support Fixed Vlan(Optional)
◆ External power adapter supply
Flexible
Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong – high up on walls and ceiling for maximum coverage
– or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.
Plug and Play
The standards-based PoE Switch senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
Quiet and Compact
Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.
Order Information
Product: NTW-PF41
Accessories in the Package:
|
Package Contents
|
5-Port 10/100 SWITCH with 4 POE ports and 1 Uplink Ethernet ( NTW-PF41) |
| AC Adapter |
|
User Guide
|
|
Warranty Card
|
Technical parameter list
| |
Product Name |
5-Port AF PoE Switch with 4 PoE Ports and 1 Uplink Ethernet |
| |
Model |
NTW-PF41 |
| |
Connector Type |
5x 10/100M copper cable RJ45 ports(4 PoE ports+1 Uplink) |
| |
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
| |
Bandwidth |
1.0Gbps (non-blocking) |
| |
Address Database Size |
1K |
| |
MTBF |
190,000 hours (about 21 years) |
| |
Forwarding Mode |
Store-And-Forward |
| |
Network Protocols |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE |
| |
Power via MDI; IEEE 802.3af |
| |
|
| |
LED Display |
System: power supply; Every Port: connecting, PoE working status |
| |
Power Supply |
Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
| |
PoE Ports |
Port 1-4 support POE |
| |
PoE Port Power |
15.4W for each POE port |
| |
|
|
| |
PoE Standard |
IEEE 802.3af |
| |
PoE Feature |
All ports support MDI/MDIX |
| |
Working Environment |
Operating Temperature: -20 ° ~ 50 ° C; Storage Temperature: -40 ° ~ 75 ° C; |
| |
Operating Humidity: 10% ~ 95%, non-condensing |
| |
Certification |
CE Mark ,commercial; CE/LVD EN60950, RoHS |
| |
Radiation |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
| |
Transmission Distance |
Data transmission distance: 100m,POE distance upto 250meters with 10M via Cat.6 or more |
| |
Warranty |
3 year warranty ( 1 yeas warranty for power adapter ) |
