SC Single Mode GPON ONU Optical Network Unit ONU Router 1310nm / 1490nm DC 12V

Shenzhen Natywish Technology Co., Ltd.
Contact Now

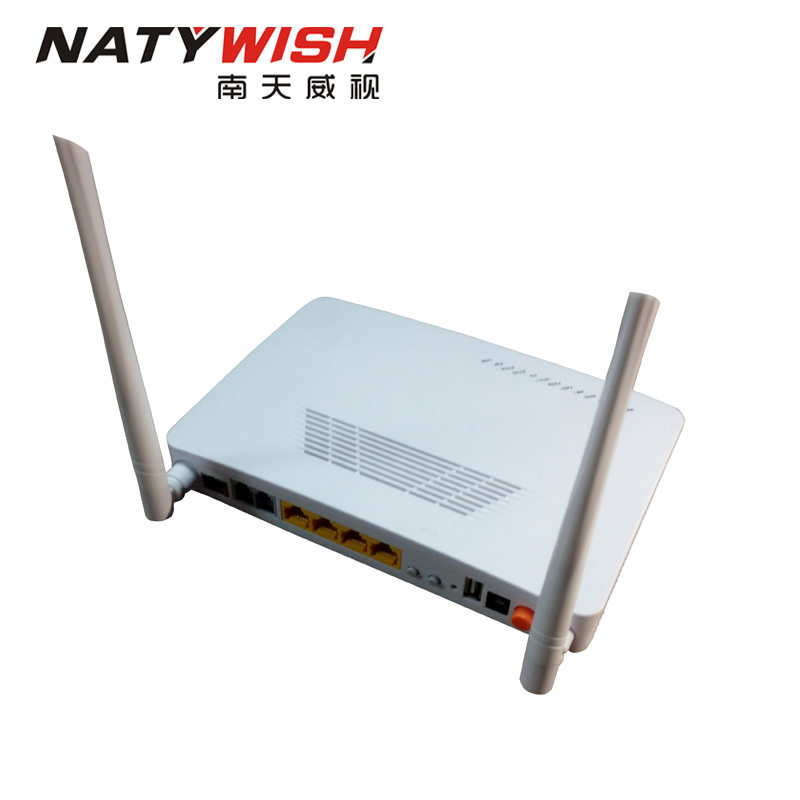

SC Single Mode GPON ONU Optical Network Unit ONU Router 1310nm / 1490nm DC 12V

  • 1
  • 2
  • 3

Brand Name : NATYWISH

Model Number : NTW-G174200S

Certification : CE, ROHS, FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, paypol

Supply Ability : 5000pcs/ week

Delivery Time : 5-8 working days

Packaging Details : 1pc/box

PON Port : SC, single-mode,single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps.

Service interface : 4*10/100/1000Mbps LAN ports. 2 voice ports with wifi function

Wavelength : Tx 1310nm, Rx 1490nm

Optical Type : SC/PC

Transfer distance : 20km

Power supply : DC 12v

Contact Now

4FE + 2 Voice Ports + WIFI GPON ONU With 1 GPON ports, 4 *1000M LAN ports, 2 voice



ports +WIFI ONU

                                                                                                                                     ----NTW-G174200S



SC Single Mode GPON ONU Optical Network Unit ONU Router 1310nm / 1490nm DC 12V







Product Overview



NTW-G174200S GPON ONU series is a broadband terminal device designed by NATYWISH,in order to meet the needs of telecom operator,SOHO broadband access,broadband speed increase,FTTH/FTTO,it adopts mature,stable and cost-effective gigabit EPON technology,and integrates Gigabit Ethernet switching, WDM and HFC optical receiving technology,with the feature of high reliable ,easy to manage and QoS guarantee.It meets IEEE802.3ah standard and China Telecom EPON equipment technical requirements (V2.1)etc.



Technical Specification



1. Power adapter input:220V AC,50HZ.

2. System power supply: See the nameplate on the device.

3. Ambient temperature:-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity:10% ~ 4.95%(non-             condensing).

4. Store temperature:-30 ~ +60℃Store humidity:10% ~ 95%(non-condensing).





Hardware Specification



  Parameter Name



  Hardware Parameter





  GPON



  Chipset





  BCM68380 Series.



  PON Port



  SC, single-mode,single-fiber, Downstream rate 2.5Gbps, Upstream    rate 1.25Gbps.





  Wavelength





   Tx 1310nm, Rx 1490nm.



  Sensitivity





   < -27dBm (CLASS B+).



 Optical Type





   SC/PC.

  Interface Type



  4*10/100/1000Mbps,

  Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector,

  2 ports, RJ11 connector.





 Wireless



 Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R one internal   antenna and one external antenna.





 Indicators



 13, For POWER,PON ,LOS,WAN,WiFi, Phone, Lan, Pair, USB.



 Dimension



 185mm×135mm×45mm.



 Power



  DC12V,1A/1.5A.



 Power   Consumption



  ≤10W.



 Weight

 (No Power   Adapter)



 340g.



  Size



 195mm x188mm x51mm.





Software Specification



   Parameter

   Name



  Software Parameter





   GPON



    LAN



  Support Port rate limiting

  Support Loop detection



    VLAN



  Support VLAN tag mode

  Support VLAN transparent mode

  Support VLAN trunk mode

  Support VLAN translation mode

  Support VLAN QinQ mode



   Multicast



 Support IGMPv1/v2/v3

 Support IGMP Proxy and MLD Proxy

 Support IGMP Snooping and MLD Snooping



     QoS



 Support 4 queues

 Support SP and WRR

 Support 802.1P

 Support DSCP



        L3



  Support IPv4,IPv6 and IPv4/IPv6 dual stack

  Support DHCP/PPPOE/Statics

  Support Static route

  Support NAT

  Support Bridge, Route ,Route and Bridge mixed mode

  Support DMZ

  Support DNS

  Support ALG

  Support UPnP

  Support Virtual Server





      DHCP



   Support DHCP Server

      VOIP



  Support SIP protocol,

  Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-            negotiate with call agent,

  Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up    to 128ms tail length,

  Support high/low speed fax/Modem, bypass fax, and T38 fax,

  Support InBand / RFC2833/SIP INFO, MD5 authentication, call          forward, call waiting, hot-line call, and all kinds of value-added voice , service. Multi-party conferencing ,

  Support Line testing according to GR-909.



    Wireless



  Support 802.11b/g/n and Mixed mode,

  Support 4 SSID ,

  Support No-auth, WEP, WPA-PSK and WPA2-PSK function with        AES,TKIP encryption.



  Performance



 Data loss: <1*10E-12.

 Call loss: <0.01%.



  Security



  Support Firewall

  Support Mac filter

  Support ACL

  Support URL filter



 Management



  Support OMCI(ITU-T G.984.x).





  Support WEB.

  Support TR069.

  Support TELNET.

  Support CLI.







Order Information





     Model



   Description



   NTW-G174200S





   4GE+2 voice ports +WIFI GPON ONU
