3.3V Power Supply GEPON OLT SFP Module , High Density SFP Optical Transceiver

Name: 33V Power Supply GEPON OLT SFP Module High Density SFP Optical Transceiver
Brand: OEM / Natywish
Price: 1 USD

Buy cheap 3.3V Power Supply GEPON OLT SFP Module , High Density SFP Optical Transceiver product

Brand Name : OEM / Natywish

Model Number : NTW-SFP

Certification : CE, ROHS, FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, paypal, Western Union

Supply Ability : 5000pcs/ week

Delivery Time : 5-8 working days

Packaging Details : 1pc/box

power supply : 3.3V

Connector : SC/PC

wavelength : TX 1490nm ; RX 1310nm

Contact Now

EPON / GEPON OLT SFP PX20+ Optical Transceiver Module 3.3V power supply

Product Features

SFP with SC/PC Connector Transceiver
1490 nm DFB Tx
1310 nm APD Rx
Digital diagnostics SFF-8472 Compliant
1250 Mbps continuous mode Transmission
1250 Mbps Burst mode receiver Data Rate
Provide fast RSSI function
Operation case temperature: 0~70°C
Complies with RoHS directive (2002/95/EC)

Applications:

Data services
Voice services
Video services
Monitoring service
FTTH

Absolute Maximum Ratings

Parameter	Unit	Min.	Typical	Max.
Power Supply	V	0		4.2
Storage Ambient Temperature	°C	-40		85
Operating Case Temperature	°C	0		70
Operating Relative Humidity	%	5		95
Receiver Damaged Threshold	dBm	0

Operating Condition

Parameter	Unit	Min.	Typical	Max.
Power Supply	V	3.1	3.3	3.5
Operating Case Temp for C-temp	°C	-10		70
Operating Case Temp for E-temp	°C	-25		85
Operating Case Temp for I-temp	°C	-40		85
Operating Relative Humidity	%	5		95
Data Rate(TX/RX)	Gbit/s		1.25

Optical Characteristics

Parameter	Unit	Min.		Typ.	Max.
TX Central Wavelength	nm	1480			1500
Spectral Width (-20dB)	nm				1
SMSR	dB	30
Mean Launched Power	dBm	2			7
Mean Launched Power (TX Off)	dBm				-39
Extinction Ratio(Note 1)	dB	9
TX Total Jitter	UI				0.43
Rise/Fall Time (20%-80%)	ps				260
RIN₁₅OMA	dB/Hz				-115
Optical Return Loss Tolerance	dB				-12
Transmitter and dispersion Penalty(20km G.652)	dB				2.3
TX Optical Eye Mask	Compliant With IEEE Std 802.3ah™-2004
Receive Wavelength	nm		1260		1360
Sensitivity (Note 2)	dBm				-30
Overload	dBm		-6
Receiver Threshold Settling Time	ns				250
RX Dynamic Range(Note 3)	dBm		-30		-6
LOS-Deassert	dBm				-31
LOS-Assert	dBm		-45
SD Hysteresis	dB		0.5		6
Receiver Reflectance	dB				-12

Note:

Measured with PRBS 2⁷-1 test pattern @1.25Gbps, Low Pass Filter is on.
Measured with a PRBS 2⁷-1 test pattern @1.25Gbps and ER=10dB, BER =10^-12

Electrical Characteristics

Parameter	Unit	Min.	Typical	Max.
Power Supply Current	mA			300
Data Input Differential Swing	mV	200		1600
Data Differential Impedance	Ω	90	100	110
TTL Input -Low	V	0		0.8
TTL Input -High	V	2.0		Vcc
TTL Output -Low	V	0		0.4
TTL Output -High	V	2.4		Vcc
Data Output Differential Swing	mV	400		1600
Los Assert Time	ns			500
Los Deassert Time	ns			500

3.3V Power Supply GEPON OLT SFP Module , High Density SFP Optical Transceiver

Product Tags:

fiber optic sfp module

small form factor transceiver

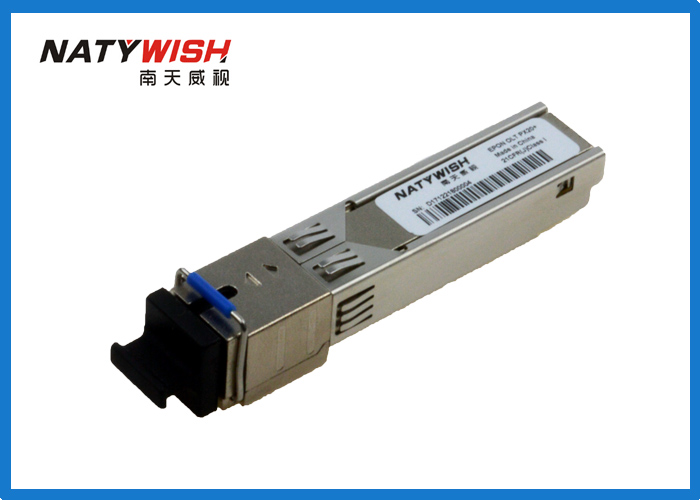

3.3V Power Supply GEPON OLT SFP Module , High Density SFP Optical Transceiver Images
