10 / 100M Industrial Ethernet Switch , 2Gbps Bandwidth Industrial Gigabit Ethernet Switch

Name: 10 100M Industrial Ethernet Switch 2Gbps Bandwidth Industrial Gigabit Ethernet Switch
Brand: NATYWISH
Price: 1 USD

Buy cheap 10 / 100M Industrial Ethernet Switch , 2Gbps Bandwidth Industrial Gigabit Ethernet Switch product

Brand Name : NATYWISH

Model Number : NTW-S5700

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Paypol

Supply Ability : 1000/week

Delivery Time : 2 weeks

Packaging Details : 1pcs/box

Product Name : 10-Ports AF PoE Switch with 8 PoE Ports and 1 Uplink

Connector Type : 10x 10/100M copper cable RJ45 ports(8 PoE ports+2 Uplink)

PoE Ports : Port1-8 support POE

PoE Port Power : 15.4W for each POE port

Contact Now

10/100M industrial ethernet switch with POE, provide one optical port, eight ethernet ports with POE function

--- NTW-S5700

◆ IEEE 802.3af power on up to 8 ports
◆ Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆ 10*10/100 Mbps Ports with AutoUplink™
◆ Supports PoE power up to 15.4W for each PoE port
◆ Supports PoE power up to 120W for all PoE ports
◆ Supports PoE IEEE 802.3af compliant PDs
◆ Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
◆ 1K entry MAC address table of the PoE Switch with auto-learning and auto-aging
◆ LED indicators for monitoring power, link

◆ Support Vlan and Extend Function

◆ Internal power adapter supply

Technical parameter list
Product Name	10-Ports AF PoE Switch with 8 PoE Ports and 1 Uplink port.
Model	NTW-S5700
Connector Type	10x 10/100M copper cable RJ45 ports(8 PoE ports+2 Uplink)
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth	2Gbps (non-blocking)
Address Database Size	1K
MTBF	190,000 hours (about 21 years)
Forwarding Mode	Store-And-Forward
Network Protocols	IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
LED Display	System: power supply; Every Port: connecting, PoE working status
Power Supply	Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports	Port1-8 support POE
PoE Port Power	15.4W for each POE port
PoE Standard	IEEE 802.3af
Led indicator	Green: Ethernet SW: On: VLAN, 100meters Flashing: VLAN, 250meters Off: VLAN Closed,100meters Flashing: VLAN Closed, 250meters
Working Environment	Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Certification	CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation	CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance	Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.)
Warranty	3 year warranty(1 yeas warranty for power adapter)

10 / 100M Industrial Ethernet Switch , 2Gbps Bandwidth Industrial Gigabit Ethernet Switch

Product Tags:

industrial grade ethernet switch

industrial gigabit ethernet switch

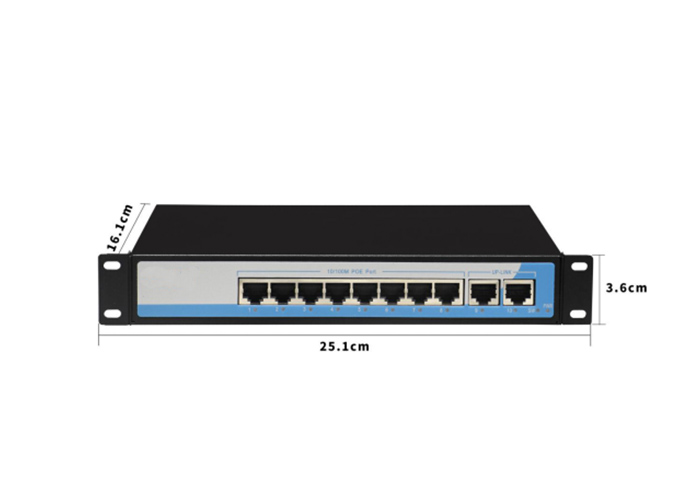

10 / 100M Industrial Ethernet Switch , 2Gbps Bandwidth Industrial Gigabit Ethernet Switch Images
